Research background

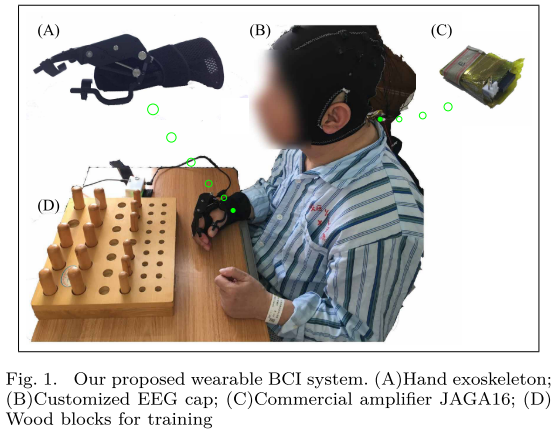

The combination of BCI and auxiliary robot is a new treatment for stroke rehabilitation. However, most of the existing study is based on complex system setups, expensive and bulky equipment. In this study, a wearable EEG brain-computer interface system for hand function rehabilitation is designed to do clinial trial. This system is composed of customized EEG cap, commercial amplifier, and hand exoskeleton. In addition, the system includes the visual interface for the convenience of users. The trial enrolled six healthy participants and two stroke patients to verify the safety and effectiveness of the system.
Method

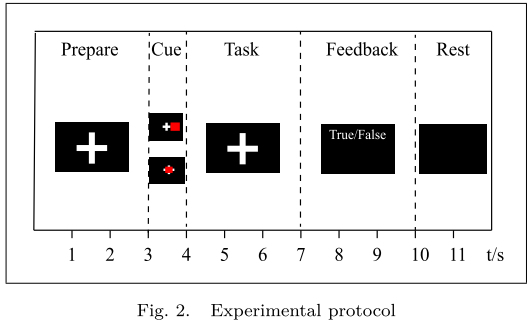

To verify the safety and effectiveness of the system, 6 healthy subjects(1 female and 5 males, aged 23±3 years old) from Shanghai Jiao Tong University and 2 stroke patients(all right hand affected) from the rehabilitation department of Huashan Hospital were recruited to participate in the study. A 6-minute training session was conducted for each subject, in which the subjects performed right-hand motor execution(stroke patient’s affected hand to make a movement attempt) according to visual cues. A red rectangle appears on the right or center of the screen, indicating action execution (or attempt) or rest, respectively. The task lasts for 4 seconds until the white cross disappears. It is recommended that healthy subjects repeat clenching and extending fists 3-4 times, and stroke patients are instructed to make motor attempts during motor tasks. The online test was similar to the training session, except that all red rectangles appeared in the center of the screen, which allowed subjects to choose to move their hand (or exercise attempt) or rest at will. Test results are provided to users visual and proprioceptive feedback via a screen and hand exoskeleton shortly after task completion. There are three online test runs, each containing 20 trials. Each subject may rest between runs. All subjects were asked to refrain from any additional facial or arm muscle movement throughout the experiment.
Result

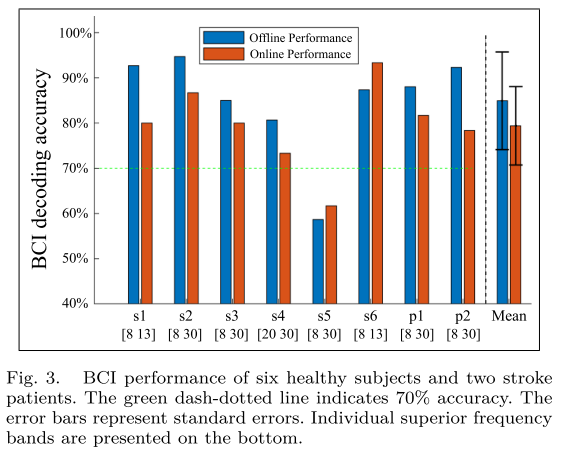

The average accuracy of offline and online training is 84.91% and 79.38%, respectively. Seven subjects had online accuracy of more than 70%, five more than 80%, and one more than 90%.
The Event-related Spectral Perturbation(ERSP) showed that the sensorimotor cortex was activated in both α and β bands during right hand movement training, with stronger activation on the same side. Meanwhile, as expected, the uncontrolled state showed no significant activation on either the C3 or C4 channels. In the online test, both the left and right hemispheres were activated to perform right-handed movements.
Conclusion
This study demonstrates a wearable brain-computer interface system for hand function rehabilitation after stroke. The results of motor task differentiation preliminarily confirm the feasibility of this device, which shows great clinical application potential.
Reference: Qin Z, Xu Y, Shu X, et al. eConHand: A Wearable Brain-Computer Interface System for Stroke Rehabilitation[C]// 2019 9th International IEEE/EMBS Conference on Neural Engineering (NER). IEEE, 2019.
