The low- and medium-frequency electrotherapy system is an innovative electrotherapy device that combines wired medium-frequency modules and wireless low-frequency modules in one product. It has 4 wired medium frequency channels and up to 36 wireless low frequency channels, which can greatly improve the treatment efficience and overall lower the equipment expense in hospitals. Regarding the treatment efficiency, the system internally installs up to 40 electrotherapeutical prescriptions, and therapists can also set their own prescriptions by adjusting the parameters of the electric wave.
The frequency of low-frequency electrotherapy is less than 1000 Hz, which can significantly affect the sensory and motor nerves, and each electrical stimulation can induce a muscular contraction response. The main effects of this type of treatment include activating nerve tissue, improving local blood circulation, relieving pain, and reducing inflammatory symptoms.
In contrast, the frequency range of mid-frequency electrotherapy is between 1000 Hz and 100,000 Hz. Due to the increased frequency, this frequency of electrotherapy is able to penetrate deeper into the tissue structure. It has low excitability to sensory nerves and does not cause pain. Because of the human's absolute refractory period, it takes multiple electrical stimuli to induce a single muscle contraction. The main therapeutic effects of mid-frequency electrotherapy include pain relief, improvement of blood circulation, softening of scar tissue, and relief of tissue adhesion.

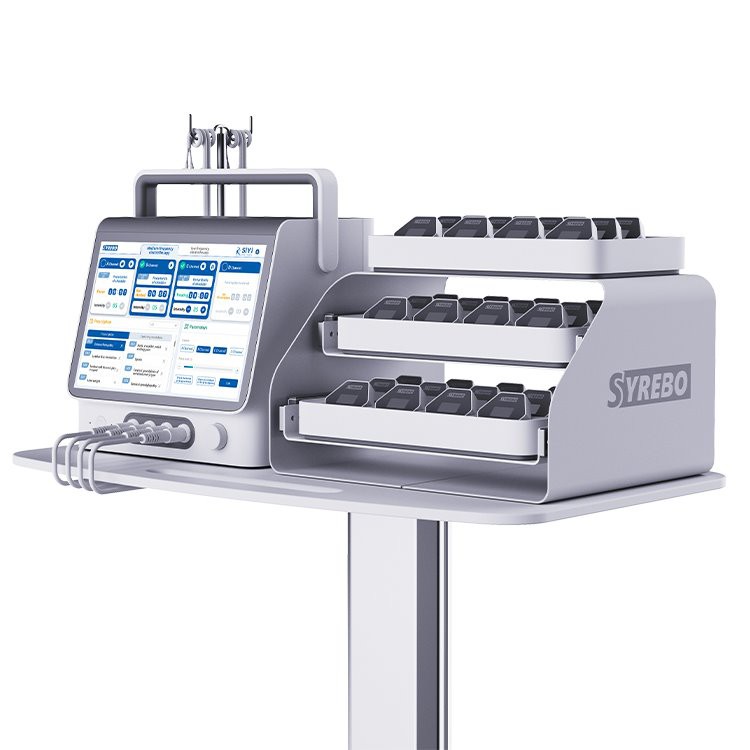

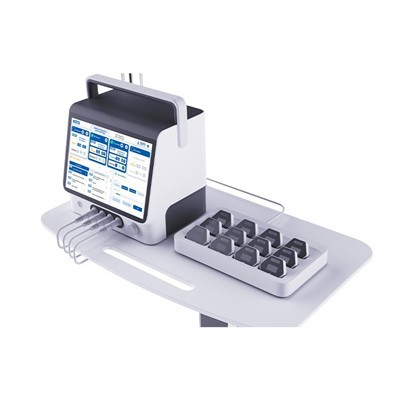

The innovative Low and Medium Frequency Electrotherapy System combines the above-mentioned two electrotherapies into one device. It supports 4 mid-frequency channels and up to 36 low-frequency channels, is integrated with 40 prescriptions, and can offer rehabilitation spots for up to 40 patients or body parts at the same time, which greatly improves the efficiency of the rehabilitation process and saves the expense for the hospital or rehab center.

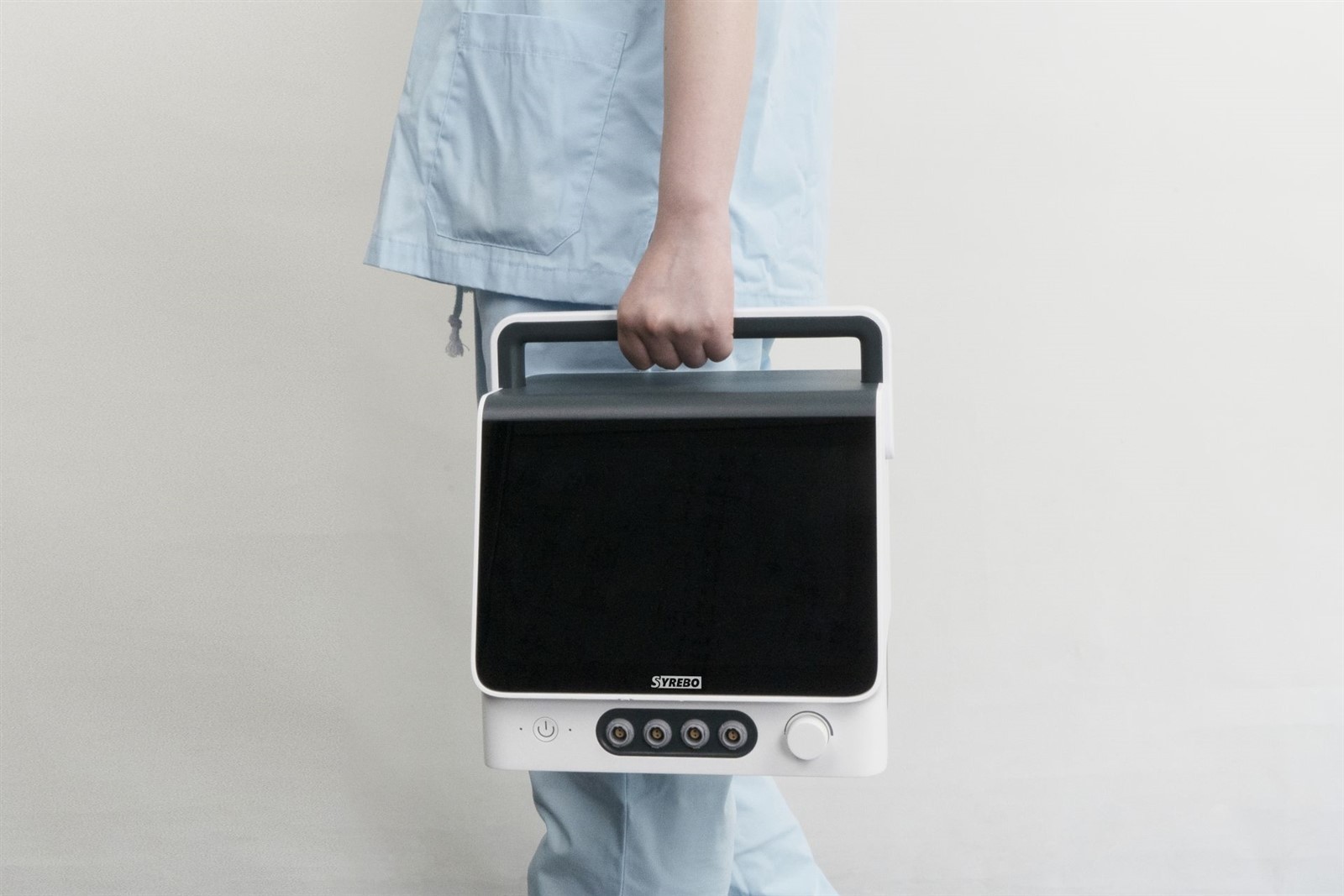

Portable host equips with handle
The main host weighs only 3 kg and can be easily carried with the handle through multiple environments.
Multiple channels
Lorem ipsum dolor sit amet,consectetur adipisicing elit. Delectus,natus numquam unde qui pariatur porro necessitatibus harum libero commodi rem veritatis in nisi vero odit tenetur esse quidem inventore ex. Sunt nam mollitia,accusantium voluptates

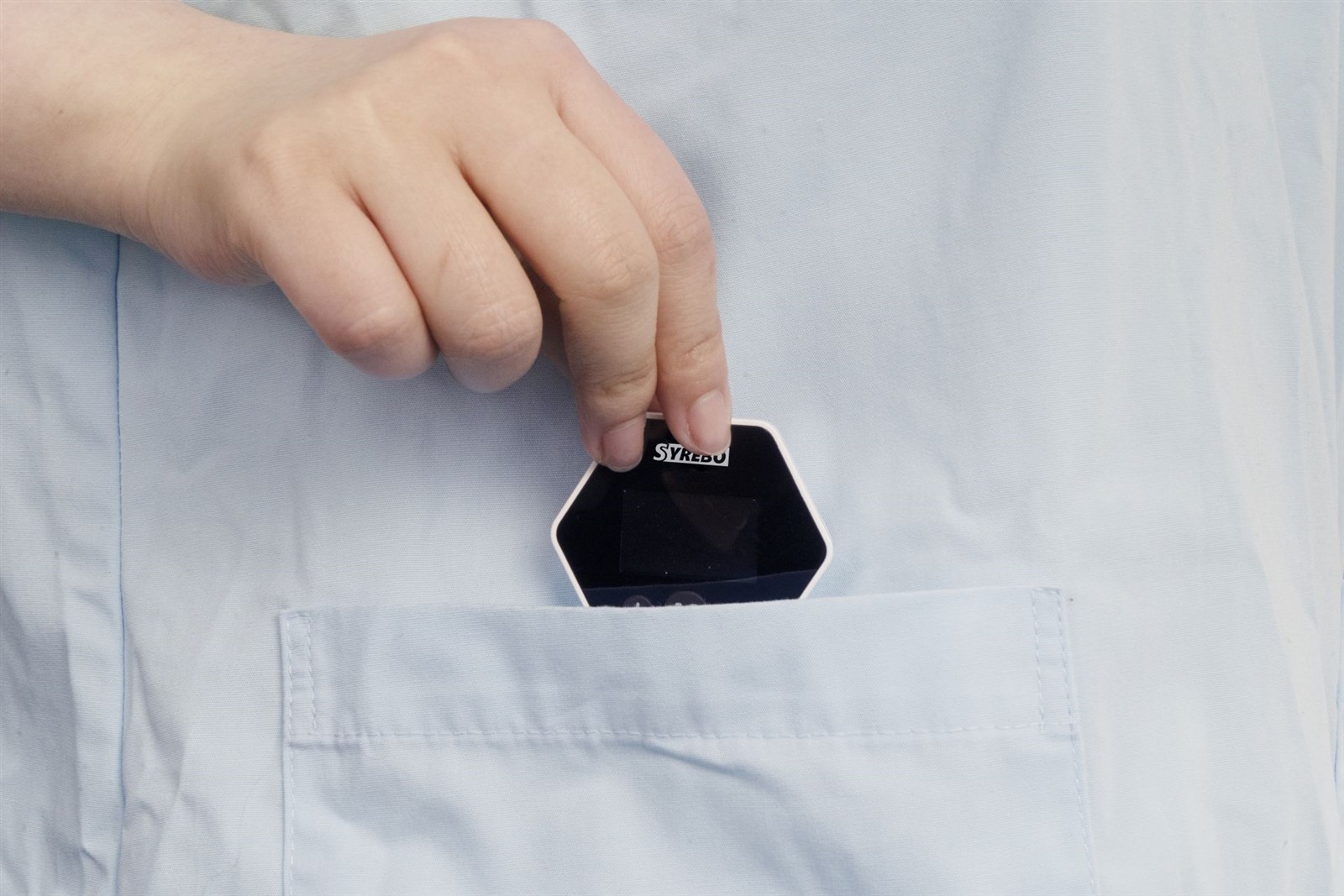

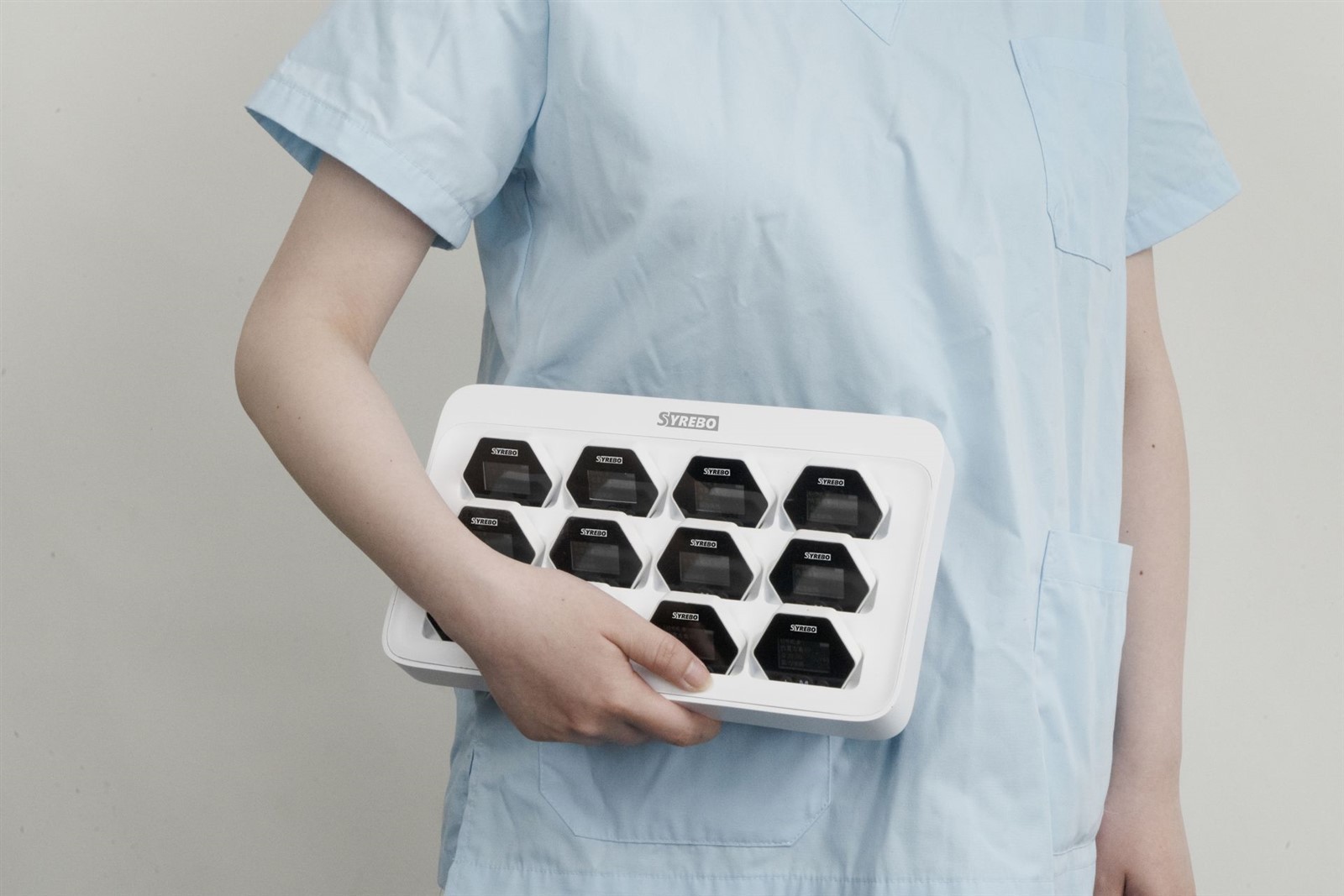

Light and small terminal

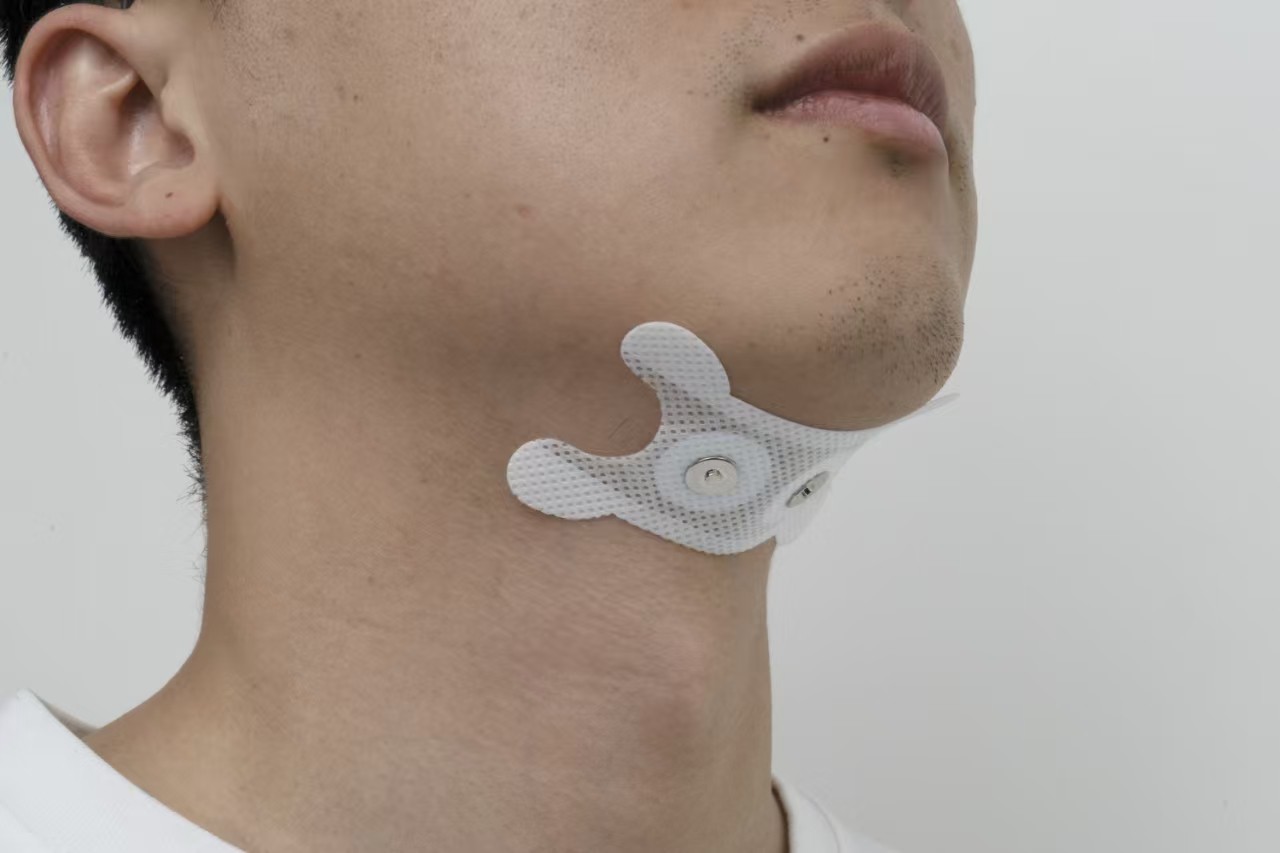

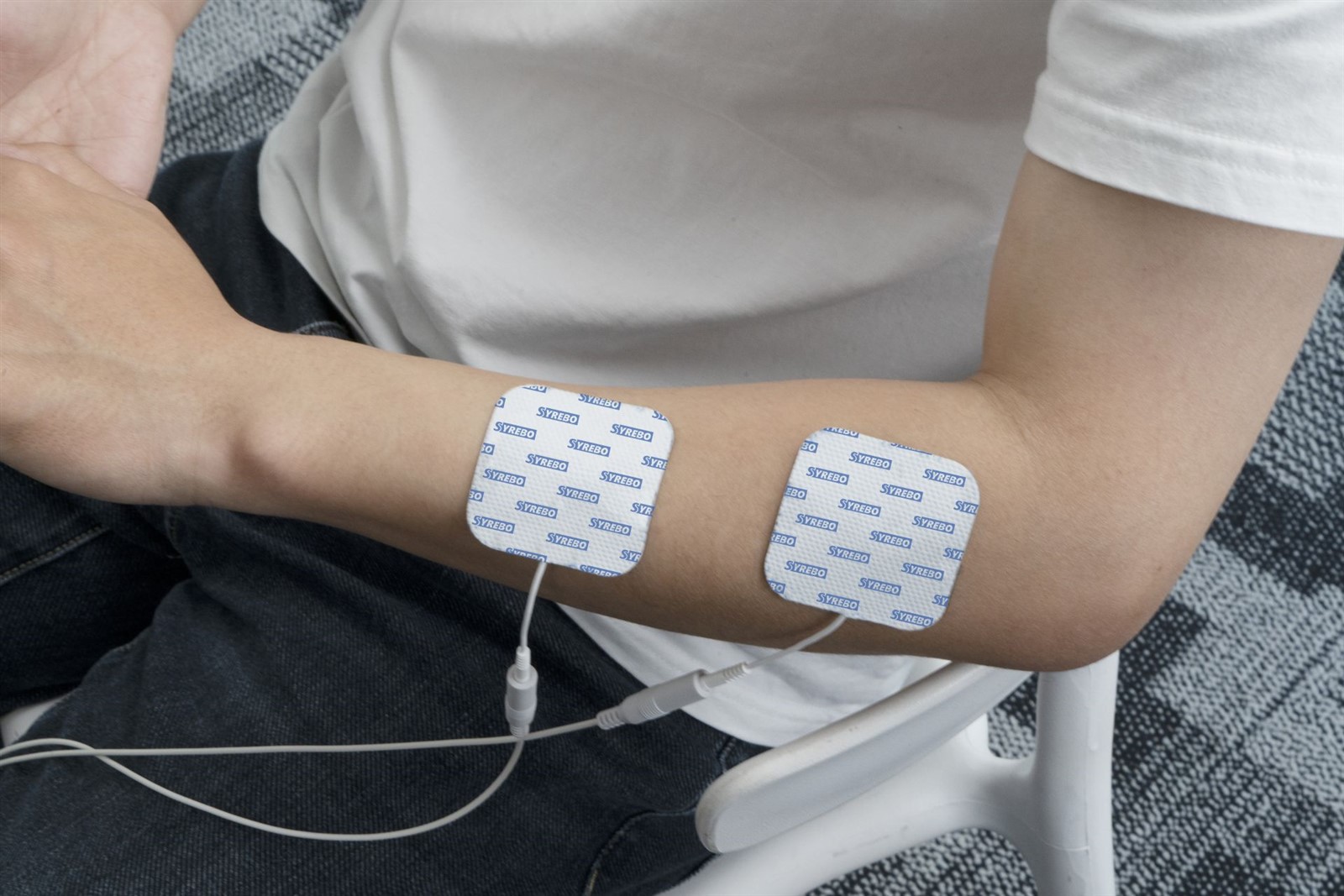

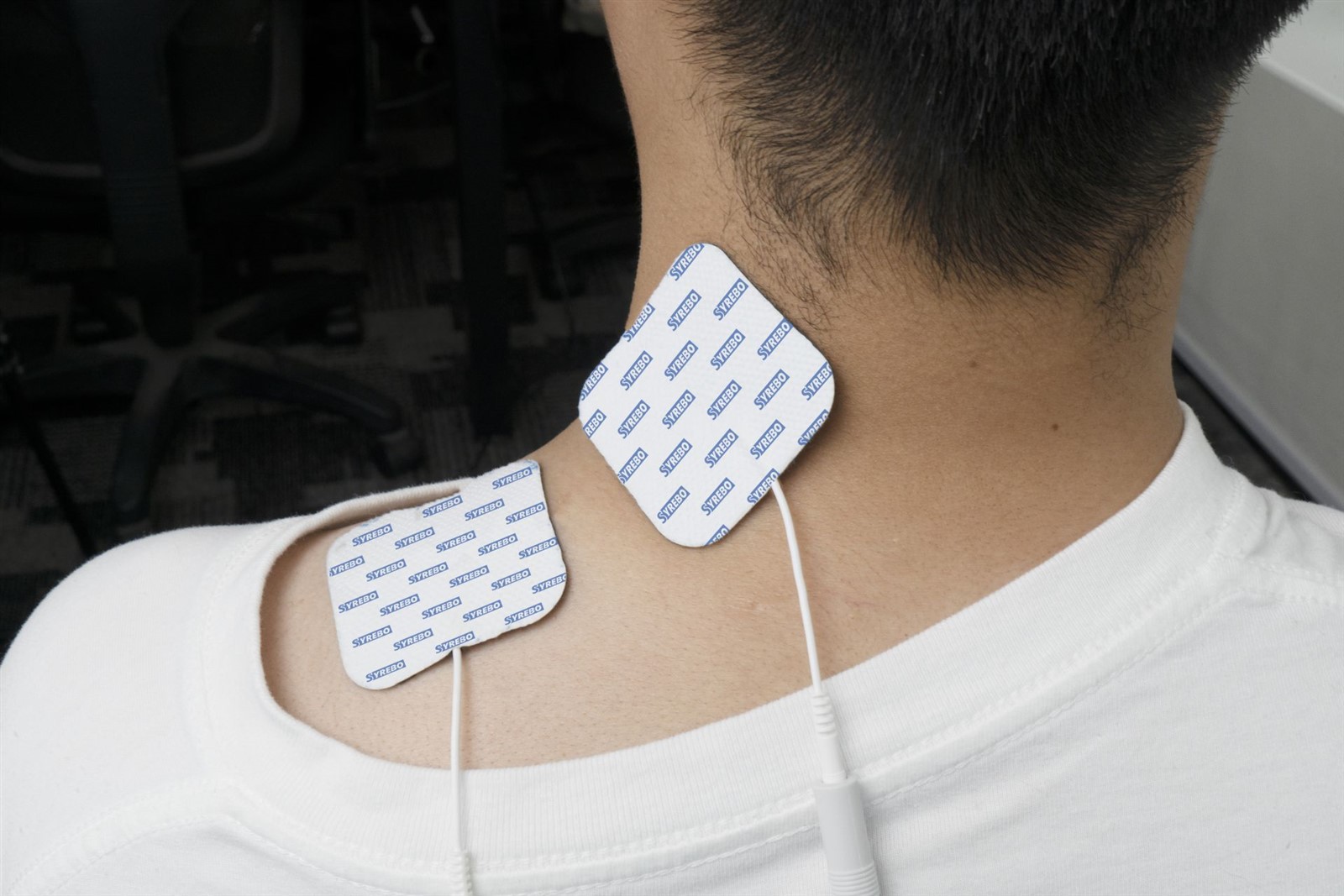

One small terminal weighs only 30 g. After being given prescriptions (including wave types, wave length, frequency, and time), these terminals can be taken from the charging plate and work individually. Patients only need to connect the terminals to the electrodes, stick the electrodes onto the affected part, press the start button, and adjust the intensity, and then the treatment is prepared.

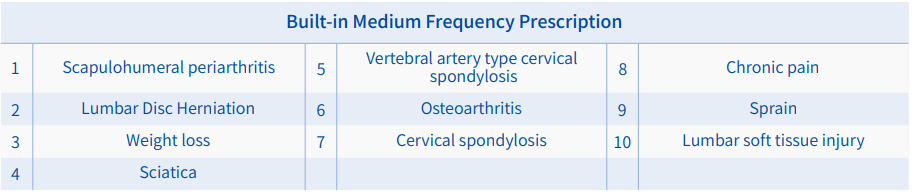

(1)We installed 10 prescriptions for mid-frequency channels:
·Periarthritis of shoulder
·Neck, shoulder, waist, and leg pain
·Osteoarthropathy
·Lose weight
·Exercise-induced lumbar soft tissue injury
·Cervical spondylosis of vertebral artery type
·Lumbar disc herniation
·Sprain
·Cervical spondylopathy
·Sciatica

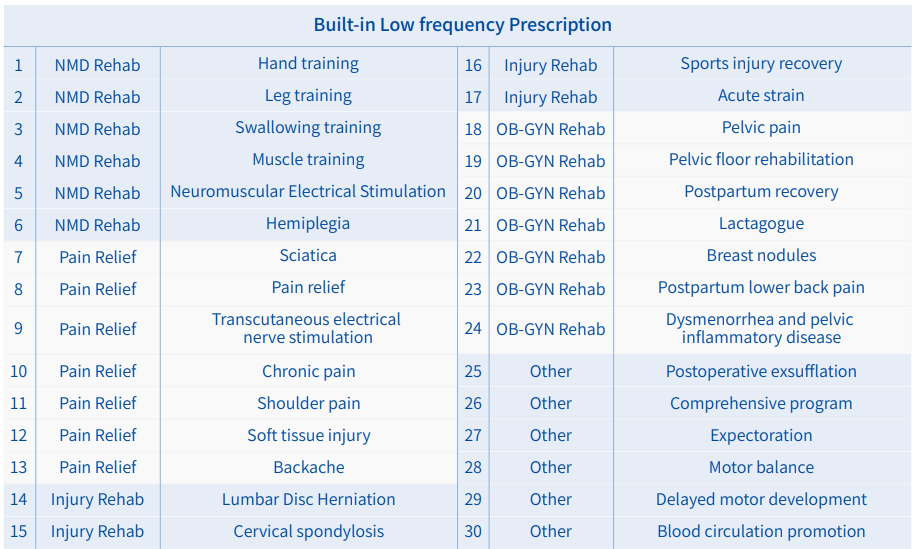

30 prescriptions for low-frequency channels are also installed and are categorized in 6 aspects:
·Muscle strength training
·Relieve pain
·Sports injury recovery
·Obstetrics and Gynecology
·Others
(2)Customizable prescription:
Except for installed prescriptions, therapists can also make their own prescriptions by setting wave types, wave length, and frequency by themselves
The system is used to excite neuromuscular tissue, relieve pain, reduce inflammation, promote local blood circulation, soften scars, loosen adhesion, etc. Therefor, its application is distributed in pain, neural, geriatric, orthopedic, postpartum, and cardiopulmonary rehabilitation in the hospital.
